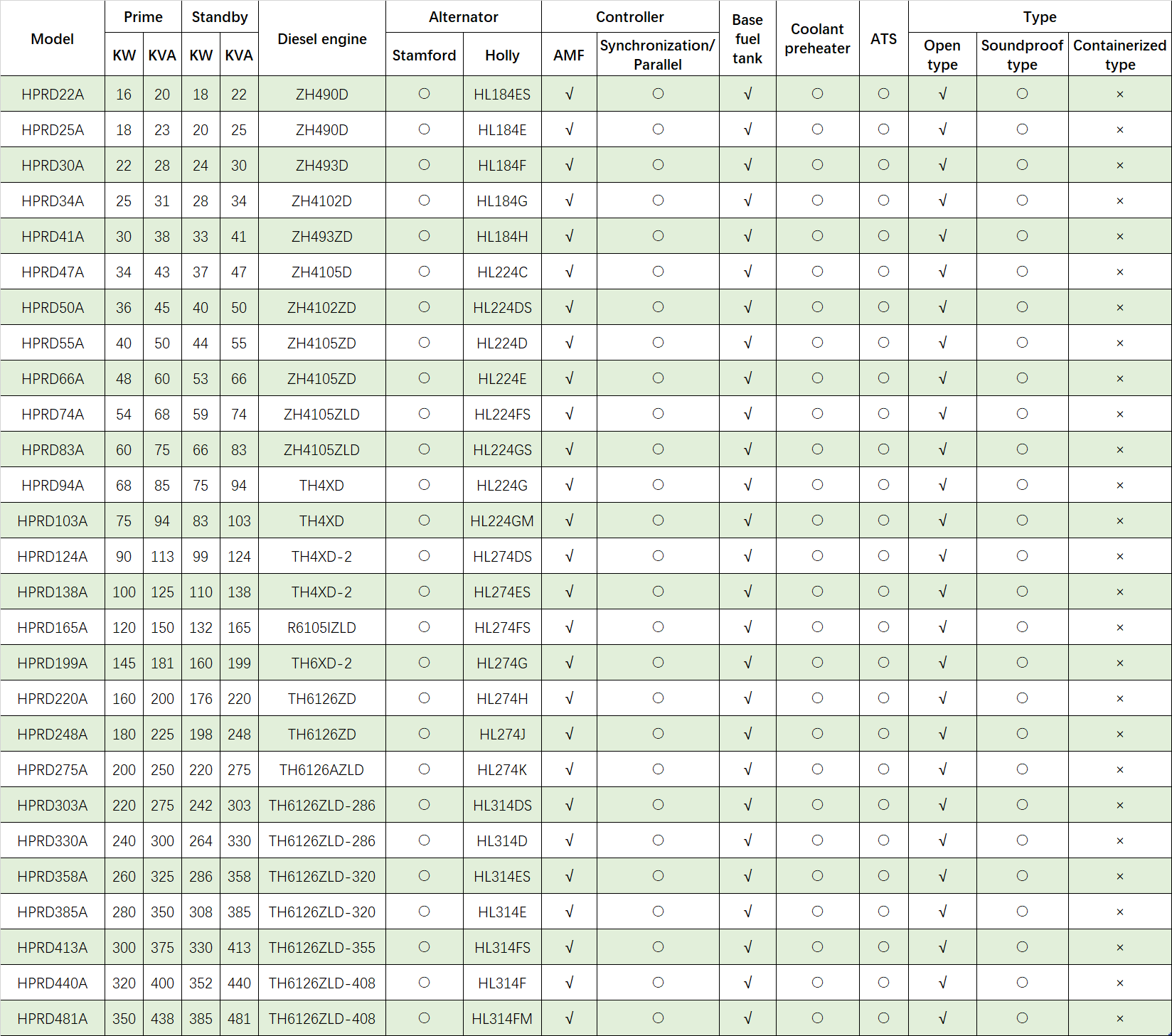

√: Standard

○: Option

x: Unavailable

Remark:

All rated data are based on the operation under ISO 8528-1, 1SO 3046, DIN6271 conditions, using typical fan sizes and transmission ratios.

The performance tolerance referenced by Holly is ±5%.

The prime power = the power under the available load to replace the main power grid. 10% overload is allowed for one hour of operation every 12 hours.

Standby power = The power available under variable load in the event of a failure in the main power grid, with a maximum of 500 hours per year. Overload is not allowed.

Rated power factor: 0.8
